HP mt22 Mobile Thin Client Drivers Windows 10 64 Bit Download

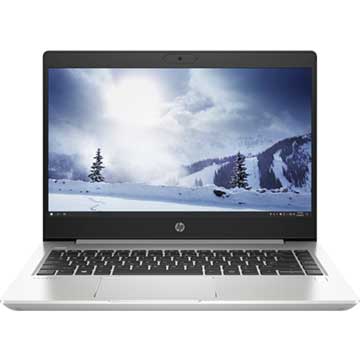

If you own HP mt22 laptop, then these are HP mt22 Mobile Thin Client drivers for Windows 10 64 Bit you can download and install to get your device work properly.

As described at HP website, HP mt22 Mobile Thin Client is portable business 14 inch laptop powered by 1.9 GHz Intel Celeron 5205U dual core processor with integrated Intel UHD Graphics 620 video card.

This HP notebook PC comes with up to 8 GB DDR4 2666 SDRAM memory and 128 GB M.2 SATA TLC SSD solid state drive to store files, musics, photos, videos, and other documents.

This mobile computer features USB 3.1 Gen 1 Type-C (Power delivery and DisplayPort), USB 3.1 Gen 1 Type-A (1 powered port), VGA port, HDMI 1.4b (cable sold separately), Multi-format digital media reader slot (Supports SD, SDHC, and SDXC), stereo speakers, Intel Dual Band Wireless-AC 9560 802.11a/b/g/n/ac (2x2) WLAN, Bluetooth 51 Combo, 720p HD webcam, HP premium keyboard, Backlit keyboard (optional), Windows 10 IoT Enterprise OS, and HP Long Life 3-cell 45 Wh Li-ion battery with up to 14 hours and 45 minutes of battery life.

HP mt22 Mobile Thin Client Drivers


HP MT22 MOBILE THIN CLIENT SPECIFICATIONS


OPERATING SYSTEM (PREINSTALLED)

HP ThinPro (Not all features are available with HP ThinPro.)
HP Smart Zero Core
Windows 10 IoT Enterprise

PROCESSOR

Intel Celeron 5205U processor
1.9 GHz
2 Threads, 2 MB L3 cache and 2 cores

GRAPHICS

Intel UHD Graphics 620

DISPLAY

Non-touch
35.56 cm (14.0 in) diagonal HD SVA eDP anti-glare slim, 220 nits, 45% NTSC two WLAN antennas (1366 x 768)
35.56 cm (14.0 in) diagonal HD SVA eDP anti-glare slim, 220 nits, 45% NTSC for HD camera and two WLAN antennas (1366 x 768)
35.56 cm (14.0 in) diagonal FHD IPS eDP anti-glare slim, 250 nits, 45% NTSC and two WLAN antennas (1920 x 1080)
35.56 cm (14.0 in) diagonal FHD IPS eDP anti-glare slim, 250 nits, 45% NTSC for HD camera and two WLAN antennas (1920 x 1080)

Touch
35.56 cm (14.0 in) diagonal FHD IPS eDP slim touch-on-panel screen, 250 nits, 45% NTSC for HD camera and two WLAN antennas (1920 x 1080)

HDMI support
Supports resolutions up to 4K at 30 Hz

STORAGE

128 GB M.2 SATA TLC SSD

MEMORY

8 GB DDR4 - 2666 SDRAM (2 x 4 GB)
4 GB DDR4 - 2666 SDRAM (1 x 4 GB)

AUDIO

Stereo speakers, mono or dual array microphone.
2 W/4 ohm per speaker

CAMERA

720p HD webcam

KEYBOARD

HP premium keyboard
Backlit keyboard (optional)
Full-sized island-style
Spill resistant

POINTING DEVICE

Clickpad with multi-touch gesture support enabled
Gestures enabled by default (Windows 10 IoT)

FUNCTION KEYS

F1 - Display switching
F2 - Blank
F3 - Brightness down
F4 - Brightness up
F5 - Audio/speaker mute
F6 - Volume down
F7 – Volume up
F8 - Microphone mute
F9 - Backlight toggle for backlit keyboard or Blank
F10 - Num lock
F11 - Wi-Fi toggle
F12 - Sleep
Hidden Functions
Fn+R - Break
Fn+S - Sys Rq
Fn+C - Scroll Lock

PORTS

1 x USB 3.1 Gen 1 Type-C (Power delivery and DisplayPort)
2 x USB 3.1 Gen 1 Type-A (1 powered port)
1 x VGA port
1 x HDMI 1.4b (cable sold separately)
1 x RJ-45
1 x AC power interface
1 x RJ-45/Ethernet
1 x Headphone/microphone combo

SLOT

Multi-format digital media reader
Supports SD, SDHC, and SDXC.

WIRELESS LAN (WLAN)

Intel Dual Band Wireless-AC 9560 802.11a/b/g/n/ac (2x2) WLAN and Bluetooth 51 Combo(non-vPro)

ETHERNET

Realtek 10/100/1000 Gigabit Ethernet NIC

POWER SUPPLY

Adapters
HP Smart 65 W External AC power adapter
HP Smart 65 W EM External AC power adapter
HP Smart 65 W USB Type-C adapter
HP Smart 45 W External AC power adapter
HP Smart 45 W USB Type-C adapter
Power cord
2-wire plug - 1.0 m (3.3 ft) (Japan only)
3-wire plug - 1.0 m (3.3 ft)
3-wire plug - 1.80 m (5.90 ft)

BATTERY

Type
HP Long Life 3-cell, 45 Wh Li-ion
Battery Life
Up to 14 hours and 45 minutes

DIMENSIONS  (W x D x H)

32.41 x 23.77 x 1.80 cm (12.76 x 9.36 x 0.71 in)

WEIGHT

Non-touch
Starting at 1.6 kg (3.53 lb)
Touch
Starting at 1.61 kg (3.55 lb)

SOFTWARE

BIOS
HP BIOSphere Gen5
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Secure Erase (methods outlined in the National Institute of Standards and Technology Special Publication 800-88)
Absolute Persistence Module

Communication/connectivity
HP Connection Optimizer

HP Value add software
HP Hotkey Support
HP Noise Cancellation Software

Manageability
HP BIOS Configuration Utility (BCU)
HP Device Manager
HP ThinUpdate

Client security software
HP Sure Start Gen5 (available on select HP PCs)
HP Write Filter
HP Fingerprint Sensor (sold separately or as an optional feature)
Microsoft Defender

Standard security features
TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)
USB enable/disable (via BIOS)
Power-on password (via BIOS) Setup password (via BIOS)
Security lock slot


HP MT22 MOBILE THIN CLIENT DRIVERS FOR WINDOWS 10 64 BIT


AUDIO / SOUND CARD


Realtek HD Audio Driver for WE10I 64bit
Version : 6.0.8838.1 Rev.A
Release date : Mar 9, 2020
File size : 144.8 MB
File name : sp101669.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101669.exe

GRAPHICS / VIDEO / VGA / DISPLAY


Intel Graphics Driver
Version : 26.20.100.7870 Rev.A
Release date : May 4, 2020
File size : 296.4 MB
File name : sp102333.exe
https://ftp.hp.com/pub/softpaq/sp102001-102500/sp102333.exe

CHIPSET


Intel Chipset Driver
Version : 10.1.27.2 Rev.A
Release date : Mar 9, 2020
File size : 3.1 MB
File name : sp101672.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101672.exe

Intel Dynamic Tuning Technology Driver
Version : 8.6.10401.9906 Rev.A
Release date : Mar 9, 2020
File size : 4.0 MB
File name : sp101673.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101673.exe

Intel ME Driver
Version : 1944.14.0.1371 Rev.A
Release date : Mar 9, 2020
File size : 167.6 MB
File name : sp101681.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101681.exe

Intel Serial IO Driver
Version : 30.100.1915.1 Rev.A
Release date : Mar 9, 2020
File size : 2.6 MB
File name : sp101678.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101678.exe

KEYBOARD MOUSE & INPUT DEVICE


HP Hotkey Support for
Version : 6.2.54.1 Rev.A
Release date : Mar 9, 2020
File size : 53.4 MB
File name : sp101675.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101675.exe

HP Wireless Button Driver
Version : 2.1.11.1 Rev.A
Release date : Mar 9, 2020
File size : 0.6 MB
File name : sp101683.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101683.exe

FINGERPRINT


Synaptics Fingerprint Driver
Version : 6.0.9.1110 Rev.A
Release date : Mar 9, 2020
File size : 1.8 MB
File name : sp101682.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101682.exe

WEBCAM / WEB CAMERA


HP Universal Camera Driver
Version : 2020.0.18362.3 Rev.A
Release date : Mar 9, 2020
File size : 3.3 MB
File name : sp101671.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101671.exe

STORAGE


Intel Rapid Storage Technology Driver
Version : 17.5.2.1024 Rev.A
Release date : Mar 9, 2020
File size : 17.1 MB
File name : sp101679.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101679.exe

BayHub Card Reader Driver
Version : 1.1.102.1029 Rev.A
Release date : Mar 9, 2020
File size : 4.8 MB
File name : sp101670.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101670.exe

WIRELESS LAN WLAN WIFI NETWORK


Intel WLAN Driver
Version : 21.50.1.1 Rev.A
Release date : Mar 9, 2020
File size : 7.7 MB
File name : sp101677.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101677.exe

ETHERNET LAN


Realtek Ethernet Driver
Version : 10.35.510.2019 Rev.A
Release date : Mar 8, 2020
File size : 1.1 MB
File name : sp101680.exe
https://ftp.hp.com/pub/softpaq/sp101501-102000/sp101680.exe

SOFTWARE


HP Recovery Image and Software Download Tool (ThinUpdate) 64-bit
Version : 2.6.5 Rev.A
Release date : Sep 27, 2019
File size : 322.4 MB
File name : sp99206.exe
https://ftp.hp.com/pub/softpaq/sp99001-99500/sp99206.exe

BIOS


HP BIOS and System Firmware (S82)
Version : 01.05.04 Rev.A
Release date : May 20, 2020
File size : 14.0 MB
File name : sp104022.exe
https://ftp.hp.com/pub/softpaq/sp104001-104500/sp104022.exe

USER MANUAL


HP mt22 Mobile Thin Client Manual PDF (English)
File type : PDF
File size : 3.36 MB
File name : c06563224.pdf
http://h10032.www1.hp.com/ctg/Manual/c06563224

Maintenance and Service Guide
File type : PDF
File size : 7.30 MB
File name : c06563225.pdf
http://h10032.www1.hp.com/ctg/Manual/c06563225

HP mt22 Datasheet
File type : PDF
File size : 3.38 MB
File name : 4AA7-6905EEAP.pdf
https://www8.hp.com/h20195/v2/GetPDF.aspx/4AA7-6905EEAP.pdf
